उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| Warranty: | 1 Year | Product name: | SMT Stencil Printer |
|---|---|---|---|
| Name: | Automatic SMT Stencil Printer,Full Automatic SMT Stencil Printer/ PCB Screen Printing Machine,solder paste printer | Application: | SMT PCB Assembly Production Line,stencil printer |
| Type: | Screen Printing,SMT Machine Related Products | Printing area: | 520x 350mm |

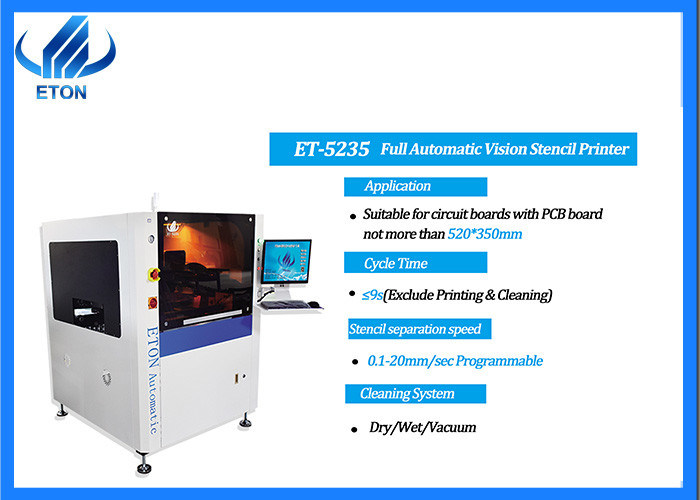

Automatic SMT Stencil Printer for LED and electric products pcb soldering
LED Chip strip lamp machine
LED chip like 2835 chip/3030 chip/5050 chip/rgb chip etc. These smd led components are mounted by the mounter machine with high speed and high precision automatic robot machine, it is more intelligent controlled with industrial computer and software, working after programming.
For led strip lamp, there are mainly two different components, one is the led chip, other is the resistor. Both of them are using mounter machine, also with some more intelligent strip light, like some design with the Big RGB multi-color chip, and the IC driver control also are no problem mounting by same machine.
Technical parameter
| Screen Frames max size | 737mm |
| Screen Frames min size | 470mm |
| Screen Frames thickness | 25~40mm |
| PCB size(L* W) |
Max size:520mm*350mm Min size:50mm*50mm |
| PCB Thickness | 0.6-6mm |
| PCB warpage | ＜1%(Max PCB diagonal) |
| Transport height | 900±20mm |
| Transport direction | Left-Right; Right-Left; Left-Left; Right-Right |
| Transport speed | Max 1200mm/s Programmable |
| Squeegee pressure | 0~10kg/cm |
| Squeegee angle | 55℃Standard |
| Squeegee type | Steel scraper(Standard),PV scraper(Option) |
| Stencil separation speed | 0.1~20mm/sec Programmable |
| Cleaning system | Dry,Wet,Vacuum (Programmable) |
Operator require
For SMT machine, if using automatic line, normally need 1-2 workers, if using semiautomatic line, normally need 2-3 workers. For the rich expenrience worker, even 1 worker could work for multi-line.
The placement machine is the core production equipment in the SMT production process, and it is also a sophisticated production equipment. The operators of the placement machine must undergo pre-job training and pass the examination before they can start work. The basic requirements for the work flow of the placement machine and the operation of the placement machine are the knowledge that the placement machine operator must require.
Workflow of placement machine:
The function of the placement machine is mainly through PCB board fixing->component suction->displacement->positioning->component placement and other operations.
Our advantages
Rich experience in SMT Industry Line. ETON set up more than 10 years, we are leading manufacturer of SMT machine in China.
Our machines are of better quality, more accurate and faster to mount. We also have our own exclusive patented technology such as dual motor electronic Feeder feeding system, flight identification visual alignment, group picking and group placing and so on.
Service
1. Before order:
We will support professional suggestion of SMT line
We will recommend the best module according to the products
We will supply best quotation with factory price
2. After order:
Machine will have good test and aging before shipping
We support machine free installation and training, special time we support online training, and video teaching.
We have Professional after-sales team, could solve problem as soon as possible
Machine warranty is one year, during warranty, any parts need to be repaired and replaced will be free for clients.
Exhibition
Our company participates in many exhibitions at home and abroad every year,
You will see ETON's booth in some well-known large-scale exhibitions in China, including large-scale exhibitions held in Shenzhen, Guangzhou, Chongqing, Shanghai and other places.
Foreign exhibitions include exhibitions in more than 20 countries including Mumbai, Delhi, Egypt, Turkey, and Vietnam.
FAQ
Q: How can you make sure that the products won’t be damaged or wet?
A: We take multiple measures to protect the products. They are first packing with individual. We put them into a carton and wrapped with plastic film and sealed with tape to keep the cartons in position and protect them from water.
Q: How is the breakdown rate of machine?
A: our machine is very stable,the breakdown rate is less than 0.001.
Q: What kind of machine will provide besides pick and place machine ?
A: ETON as the largest manufacturer of SMT machine in China, we provide whole SMT line, such as reflow oven, printer, conveyor, pick and place machine, Loader, Unloader, etc.
Q:What are your advantages?
A: Our company stick to five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
We have many big clients in India, Turkey and many countries.
In India: SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, CENTURY LED, AUTOPAL, SKYQUAD, NTL, KONARK, CEPL, FLARE, SLS are one of our large customers.
In Turkey: ACK, KENDAL, KING LED are one of our large customers.
In Vietnam: RangDong, TAMKIM are one of our large customers.
In Egypt: UNISTAR is one of our large customers.
In Tunis: SKY INDUSTRIES, FAWANIS are one of our large customers
