उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| वारंटी: | 1 वर्ष | नाम: | यूडी390 |
|---|---|---|---|
| पीसीबी मोटाई: | 0.4-0.3 मिमी | वजन: | 240 किग्रा |
| प्रयोग: | पीसीबी अनलोडर | आवेदन: | एलईडी रोशनी, बिजली के उत्पादों, घरेलू उपकरण |
| आयाम: | 2250*1010*1200 मिमी | स्थिति: | नया |
| हाई लाइट: | 240 KG PCB Unloader,SMT Convenient PCB Unloader,SMT Production Line PCB Unloader |
||

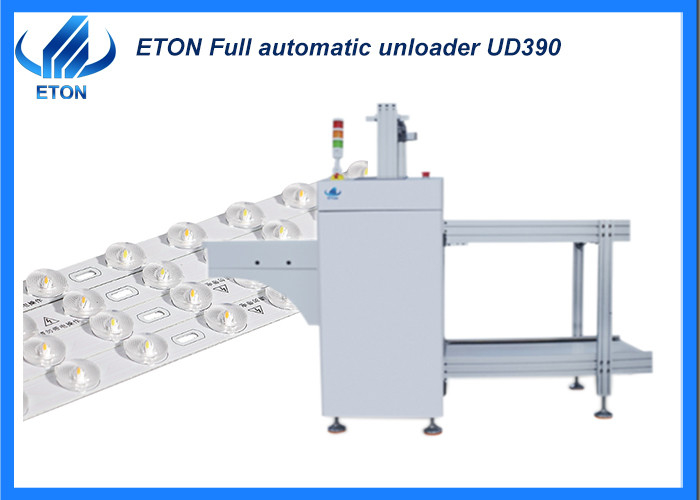

SMT convenient 240 KG unloading PCB in the SMT production line
Machine main features
1. The device of unloading PCB in the SMT production line;
2. PLC control, color man-machine interface operation;
3. Adopting the structure of steeping motor to push the board, the force and speed of the pushing board can be adjusted;
4. Auxiliary positioning brake system, accurate positioning, fast rising and falling speed, high production efficiency;
5. Multiple electric distribution circuit protection, safe and reliable;
6. Acousto-optic alarm system, abnormal information text prompt, easy operation and maintenance.
7. Standard SMEMA signal communication mode.
| Description | This equipment is used for the lowering operation of the circuit board in the production line |
| Number of turnover frame | One box on working, two boxes out of frame segment, two boxes into the frame segment(or customer specified) |
| Send board time | Around 6 s |
| Frame change time | Around 25 s |
| PCB thickness | 0.4-0.3 mm |
| Transmission height | 900±20 mm |
| PCB size | 80*50-510*390 mm |
| Dimension | 2250*1010*1200 mm |
| Size of turnover frame | 535*460*570 mm |
| Approximate weight | About 240 KG |
| Transmission direction | Left-right, right-left |
| Air pressure and air flow | 4-6 Bar, up to 1L/min |

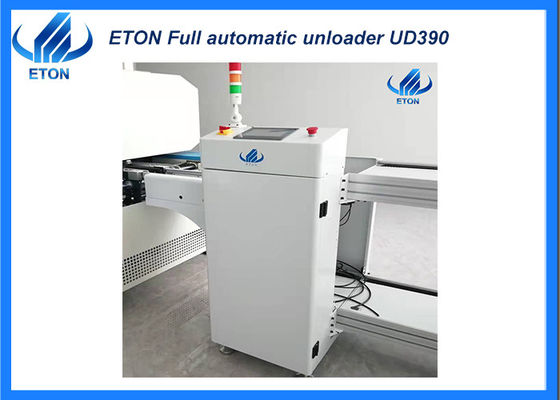

Machine main part
Market
ETON company which not only provide our high speed SMT machine in Chinese market, but also overseas market to let our customer enjoy one site service, efficient production and low consumption.
Our Exhibitions
Eton has participated in many exhibitions of foreign countries , such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc and trading with more than 30 countries. Furthermore, we have took part in our domestic large exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.
Shipping and Delivery
Land transportation: suitable for inland countries and it is affordable;
Air freight: for urgent good, and it is the most expensive transportation way;
Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.
