| Warranty: | 1 year | Weight: | 420 kg |
|---|---|---|---|
| Application: | LED lights, electrical products, household appliance | Usage: | solder paste printing machine |
| Name: | SMT automatic stencil printer Machine | Power supply: | 220V single phase, 50/60 HZ |
| Condition: | New | Dimension: | (L)1600 x(W)900 x(H)1650 mm |
| हाई लाइट: | SMT Stencil Printer For LED Strips,Stencil Printer For LED Tube,LED Tube SMT Stencil Printer |
||

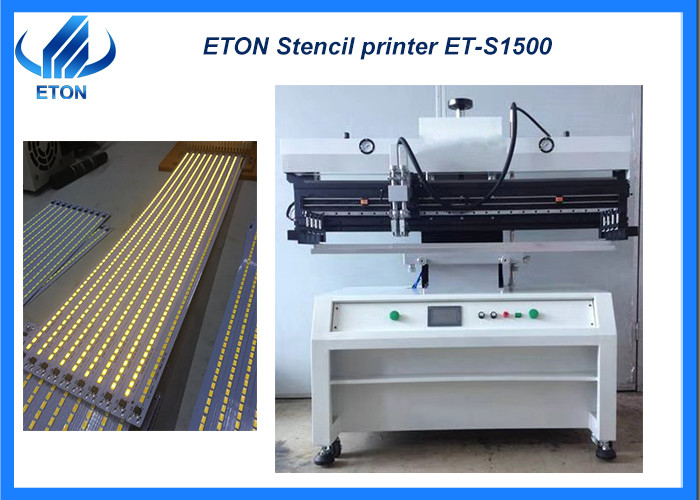

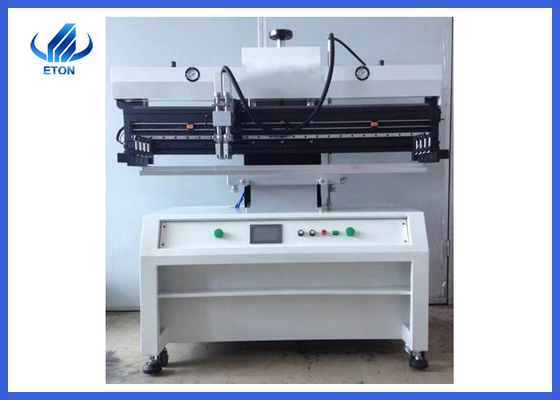

Main equipment Stencil printer for LED strip tube SMT solution
Features:
(1) the governor motor drive scraper, combining precision linear guide, ensure the printing precision;
(2) printing scraper can rotate 45 degrees of fixed upwards, printing plate and scraper cleaning and replacement;
(3) the scraper holder can adjust forward and backward, to select the suitable printing position;
(4) combined printing platen, has a fixed groove and positioning PIN, easy installation and adjustment, it is used for single and double panel printing;
(5) steel bar-mesh mobile school edition way, combined with the printing machine (PCB) XYZ calibration adjustment, convenient and quick.
(6) can be set unidirectional and bidirectional multiple printing methods.
| Model | ET-S1500 |
| Printing area: | 1500×300 mm |
| Plate Area: | 1550×320 mm |
| Stencil Frame Size: | 470×370 mm～1300×550 mm (L×W) |
| Positioning way: | positioning pin |
| Scraper Speed: | 0-100 mm/sec |
| Power: | 220V single phase, 50/60 HZ |
| Power Consumption: | 120 W |
| PCB plate thickness: | 0.2-2.0 mm |
| Plate Trimming: | Front/back +/- 10mm Right/Left +/- 10mm |
| Printing Precision: | +/- 0.05 mm |
| Air supply: | 5-7 KGF/cm2 |
| Weight: | 420 kg |
| Dimension: | (L)1600 x(W)900 x(H)1650 mm |
Our advantage
We can provide SMT line solution for you!
Pick and place machine/reflow oven/stencil printer/pcb conveyor/SPI/AOI.etc
1.Light Factory for :led bulbs,DOB,lens,panel light,downlight,streetlight,tube,0.5m,1m strip light,etc.
2.Provide Overseas engineers for Free installation and free training.
3.TOP brand of China SMT machine manufacturer,500 employees for ETON
Packages
Our package step is follow the blowing:
STEP 1: Film packaging to prevent the dust and water;
STEP 2: Packing in a foam cotton stretch a film to protect the outside of the machine;
STEP 3: Vacuum paper package and moisture proof bag, to keep dry during the transportation;
STEP 4: Equip with sturdy wooden boxes to ensure the safety of the machine, then transportation by trucks to the specified port.
Delivery: by sea, air, land transport.
FAQ
Q. Can you accept D/P or D/A as the payment term?
A. For our regular payment terms, we usually use T/T.
Q. How can I contact you to buy the goods in an efficient way?
A. Making enquiry of the products you want on the trading platform of Alibaba, Tradelink, foreign trade Express, or contact us with the social software as Whatsapp, Skype, etc.
Q. How can I look around your industrial park if I am on aboard?
A. If you have Chinese agent we can make an appointment to show you the environment, of course we also can make video call to show you the industrial park, or we will do some video to you if you need.
Q. Can you accept CIF as the quoted price?
A. We usually accept EXW as the quoted price.
Q.Whether you have professional engineers for installation of the machine in India?
A. Yes, we have professional engineers in India with local office site in Delhi and Dammam to provide considerable service to our clients.
