उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| Warranty: | 1 year | Weight: | 420 kg |
|---|---|---|---|
| Application: | LED lights, electrical products, household appliance | Power supply: | 220V single phase, 50/60 HZ |
| Condition: | New | Pcb size: | 1500*300MM |
| Dimension: | (L)1600 x(W)900 x(H)1650 mm | Printing Precision: | +/- 0.05 mm |
| हाई लाइट: | Semi Auto SMT Stencil Printer,single phase SMT Stencil Printer,single phase smt printer machine |
||

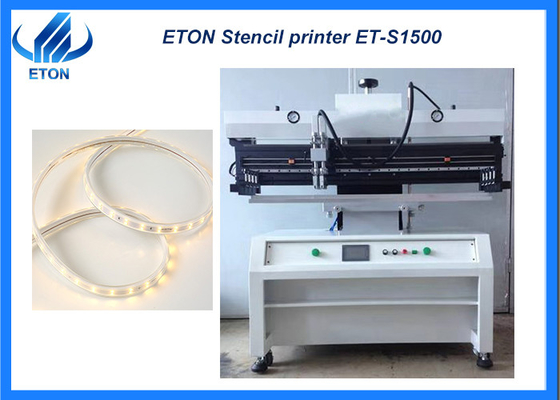

Semi-auto SMT stencil easy installation and adjustment printer
Description
(1) the governor motor drive scraper, combining precision linear guide, ensure the printing precision;
(2) printing scraper can rotate 45 degrees of fixed upwards, printing plate and scraper cleaning and replacement;
(3) the scraper holder can adjust forward and backward, to select the suitable printing position;
(4) combined printing platen, has a fixed groove and positioning PIN, easy installation and adjustment, it is used for single and double panel printing;
(5) steel bar-mesh mobile school edition way, combined with the printing machine (PCB) XYZ calibration adjustment, convenient and quick.
(6) can be set unidirectional and bidirectional multiple printing methods.
| Model | ET-S1500 |
| Printing area: | 1500×300 mm |
| Plate Area: | 1550×320 mm |
| Stencil Frame Size: | 470×370 mm～1300×550 mm (L×W) |
| Positioning way: | positioning pin |
| Scraper Speed: | 0-100 mm/sec |
| Power: | 220V single phase, 50/60 HZ |
| Power Consumption: | 120 W |
| PCB plate thickness: | 0.2-2.0 mm |
| Plate Trimming: | Front/back +/- 10mm Right/Left +/- 10mm |
| Printing Precision: | +/- 0.05 mm |
| Air supply: | 5-7 KGF/cm2 |
| Weight: | 420 kg |
| Dimension: | (L)1600 x(W)900 x(H)1650 mm |
Our Exhibitions
Participate in various exhibitions at home and abroad every year (except during the epidemic period)
Domestic exhibitions: Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED Light Exhibition, etc.
Foreign exhibitions: India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, Thailand Exhibition, etc.
Packages
Keep a good quality of the machine when during transportation till the destination of our clients which is an imperative aspect for one of a suitable service for our clients to buy our machine, so making sure of a qualified and sturdy packing is a key mission for us, here are the specified steps for your reference:
FAQ
Q. What is your actual speed of your products?
A. For the actual speed of the machine which is constrained by many factors,
that related to the number of the components, the time to send PCB board
and receive the board that will have influence on the speed when in production, and is decide for the actual products and needs.
Q. Can you accept CIF as the quoted price?
A. We only accept EXW as the quoted price for it is convenient and lower cost for both sides.
Q. Can I go and see if you have sold the equipment to India?
A. Yes, we have sold our machine in India, but for the fact we can't decide it for my customer, but I will try to contact my customer. Hope you can understand, because no one wants their competitors to visit their manufacturing site.
Q. How many products can your machine make per day?
A. The capacity of our machine is according to the real products, and the number of components on your PCB board that is important factor to figure out the actual speed of our machine with your products.
Q.What kind of machine you have?
A. We are the high speed SMT pick and place machine manufacturer, and also we build our brand to more efficient and convenient machine for our customers. We have multifunctional type, honor series, value series with high precision and high productivity.
