उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| पीसीबी आकार: | 100 * 100 मिमी ~ 1200 * 350mm | पीसीबी दबाना; आईएनजी: | समायोज्य दबाव वायवीय |
|---|---|---|---|
| प्रणाली: | विंडोज 7 | सॉफ्टवेयर: | आर एंड डी स्वतंत्र रूप से |
| प्रदर्शन: | टच स्क्रीन मॉनिटर | इनपुट डिवाइस: | कीबोर्ड और माउस |
| कैमरे की संख्या: | 2 | शक्ति: | 380AC 50 हर्ट्ज |
| बिजली की खेप: | 4kw | बढ़ते मोड: | ग्रुप स्टिक सेंट, सेंट स्टिक सेंट ले। |
| घटक स्थान: | 0.2 मिमी | फीडर स्टेशनों: | 30pcs |
| नलिका: | 8PCS | बढ़ते गति: | 40000CPH |
| बढ़ती हुई ऊँचाई: | 40mm |
product details

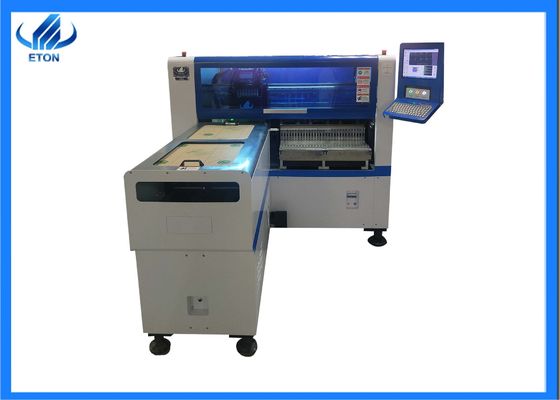

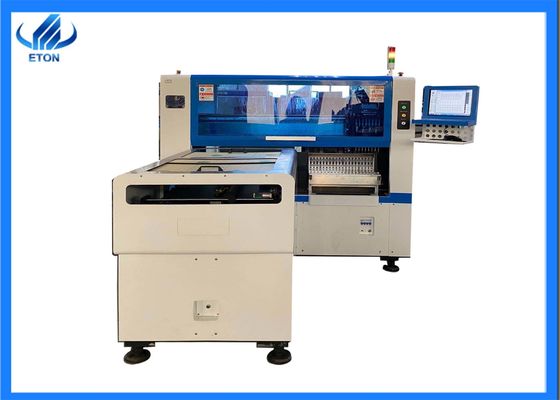

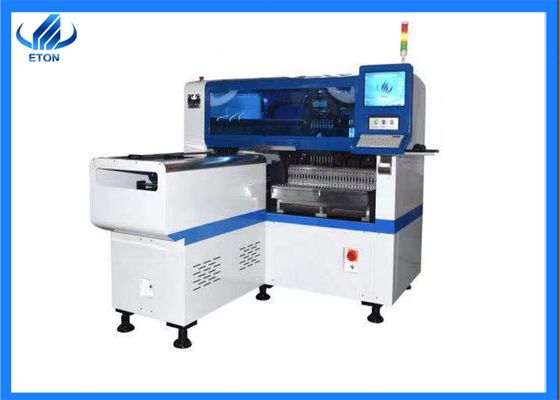

HT-E8S machine is single module multifunctional mounter with high capacity of 40000CPH. It can mount capacitors,resistors,LED3014/3020/3528/5050,IC and shaped components. It applies to power driver,electric board,lens,linear bulb,household appliance and etc.
product Technical parameters of high speed pick and place machine
Business terms of smt mounter
| Accepted delivery terms | EXW, FOB, CIF, CFR |
| Accepted payment currency | USD,CNY |
| Accepted payment type | L/C, T/T |
| Nearest port | Shenzhen |
Packing & delivery of smt mounter machine
Packing details: vacuum packing and wooden case
Shipping: Shenzhen port within 30 days after payment
Port: Shenzhen
Lead time:
| Quantity (units) | Est. Time (days) |
| １－２ | >２ |
| 3０ | To be negotiated |
Production line example of [pick and place machine
Company profile
trade show
contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825
Industry related knowledge
Multi-function placement
The multi-function placement machine can carry PCB board is much larger than EM series placement machine ,760 L can carry the maximum PCB size is 510*460*2, followed by 120 stations, more than EM series of other placement machine. are the most critical and complex equipment in the whole SMI, production. Fitting machine is the main equipment in SMT production line, now, the placement machine has developed from the early low-speed mechanical placement machine to high-speed optical alignment placement machine, and to multi-function, flexible connection modular development.
Performance parameters:
● patch speed 4000-5000 cph( industrial standard)
● minimum mountable 0201 components
● overlooking high-definition computer vision
● automatic suction
●8 mm Feeder :8*2,8*4(paper tape or tape)
●12 mm Feeder :12*4,12*8,12*12
●16 mm Feeder :16*8,16*12
●24 mm Feeder :24*8,24*12,24*16
●32 mm Feeder :32*12,32*16,32*24
●44 mm Feeder :44*16,44*24,44*32
Reflow soldering
Reflow soldering technology is no stranger in the field of electronic manufacturing. The components on all kinds of boards used in our computers are welded to the circuit board through this process. The inside of this equipment has a heating circuit, which heats air or nitrogen to a sufficiently high temperature and blows to the circuit board that has been pasted, so that the solder on both sides of the components melts and binds to the main board. The advantage of this process is that the temperature is easy to control, the oxidation can also be avoided during welding, and the manufacturing cost is easier to control.
