उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| पीसीबी आकार: | 100 * 100 मिमी ~ 500 * 350mm | पीसीबी दबाना; आईएनजी: | समायोज्य दबाव वायवीय |
|---|---|---|---|
| प्रणाली: | विंडोज 7 | सॉफ्टवेयर: | आर एंड डी स्वतंत्र रूप से |
| प्रदर्शन: | टच स्क्रीन मॉनिटर | इनपुट डिवाइस: | कीबोर्ड और माउस |
| कैमरे की संख्या: | 2 | शक्ति: | 380AC 50 हर्ट्ज |
| बिजली की खेप: | 5KW | बढ़ते मोड: | ग्रुप स्टिक सेंट, सेंट स्टिक सेंट ले। |
| घटक स्थान: | 0.2 मिमी | फीडर स्टेशनों: | 30pcs |
| नलिका: | 8PCS | बढ़ते गति: | 40000CPH |
| बढ़ती हुई ऊँचाई: | 40mm |
product details

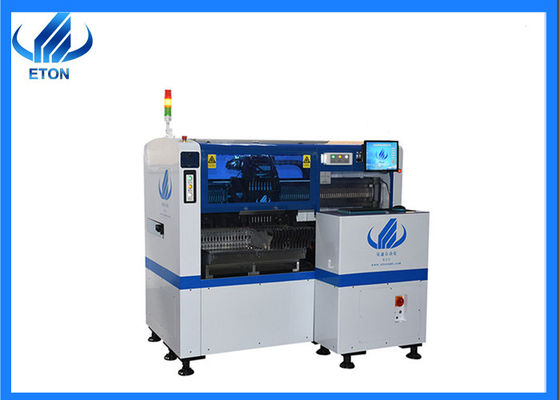

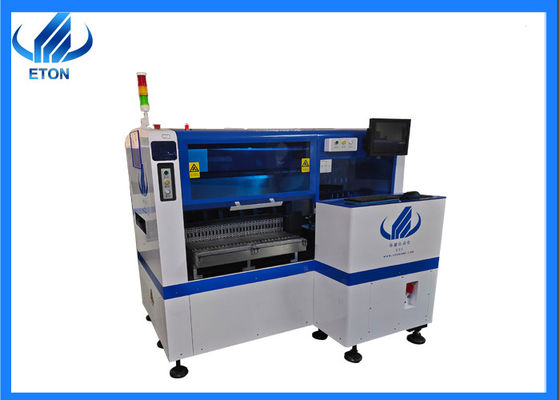

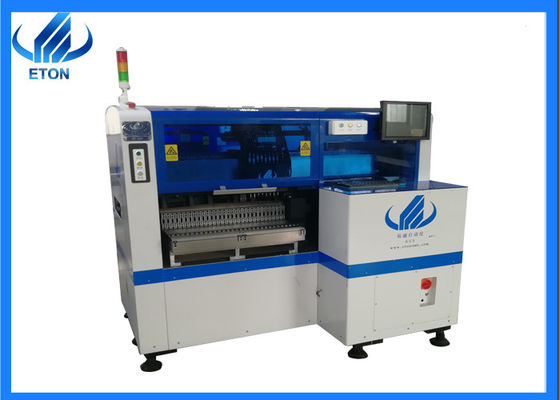

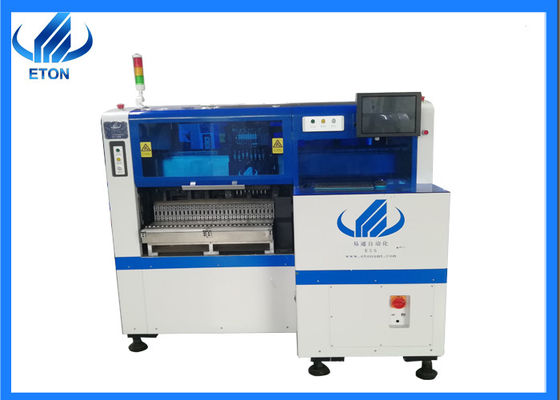

HT-E5s machine is single module multifunctional mounter with high capacity of 40000CPH. It can mount capacitors,resistors,LED3014/3020/3528/5050,IC and shaped components. It applies to power driver,electric board,lens,linear bulb,household appliance and etc.
product Technical parameters of high speed pick and place machine
| Model number | HT-E5S |
| Dimension | 1650*12000*1570mm |
| PCB size | 5000*350～100*100mm |
| PCB thickness | 0.5～3mm |
| PCB clamping | adjustable pressure pneumatic |
| mounting mode | Group take cent stick, cent take cent stick |
| system | windows 7 |
| display | touch screen monitor |
| input device | keyboard,mouse |
| NO.of camera | 2 sets of imported camera |
| mounting precision | ±0.02mm |
| mounting height | <40mm |
| mounting speed | 40000CPH |
| components space | 0.2mm |
| NO.of feedings station | 30pcs |
| NO.of nozzles | 8pcs |
| power | 380AC 50HZ |
| power consumption | 4KW |
| operating environment | 23℃±3℃ |
| conveyor transmission | MAX length:500mm |
| transmission speed | >500mm/sec |
| transmission direction | single(left→right,right→left) |
| transmission mode | online drive |
| position mode | optical |
| air pressure | >5.0kg/c㎡ |
| electrical control | independent research and development by ETON |
| motion control card module 1set | independent research and development by ETON |
| X.Y axis drive way | high-end magnetic linear motor+servo motor |
| feeding way | electric feeder with double motor |
Business terms of smt mounter
| Accepted delivery terms | EXW, FOB, CIF, CFR |
| Accepted payment currency | USD,CNY |
| Accepted payment type | L/C, T/T |
| Nearest port | Shenzhen |
Packing & delivery of smt mounter machine
Packing details: vacuum packing and wooden case
Shipping: Shenzhen port within 30 days after payment
Port: Shenzhen
Lead time:
| Quantity (units) | Est. Time (days) |
| １－２ | >２ |
| 3０ | To be negotiated |
Production line example of [pick and place machine
Company profile
our clients
contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825
Industry related knowledge
Bubble structure:
A bulb consists of seven components, the top of which is a glass cover, the cover is stuck on the base, there will be a hole on the base, the base connected to the heat conduction seat, the heat conduction seat connected to the radiator, connected to the lamp head is the driving power supply, the luminous is the lamp bead.
The highest cost of a bulb can be said to be the drive power, without this drive, the lamp beads will not be on. And if for the quality of a bulb, the most important thing is the radiator, and the drive power as well as the lamp bead.
Characteristics of bulb:
1. convenience
you can replace the existing energy saving lamp and ordinary bulb products with the same E27,E14,GU10 and B22 interface directly, without making any changes, without the help of any technicians or professionals, read our usage instructions in detail, DIY can easily realize the replacement from ordinary lighting to LED lighting.
2. security
General energy-saving lamp working temperature will be around 60-80℃, ordinary incandescent lamp temperature is higher (80-120℃), slightly accidentally touched will burn.
The bulb lamp uses the LED as the light source, with the professional heat dissipation structure, the working temperature is very low (40-60℃), even if grasp on the hand will not burn.
The material use of energy saving lamp and ordinary light bulb products is glass, collision with hard objects is easy to break, cause permanent damage and can not be used, and accidentally cut by glass.
Ball bubble use is professional design shell, lamp shell material use is PC material / acrylic die casting molding. LED part of the light source is also a special anti-earthquake and anti-fall materials (the lens part is the most advanced one-time molding soft lens technology), and its lampshade is acrylic material, even broken also not easy to cause cuts.
