उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| पीसीबी आकार: | 80 * 350mm ~ 350 * 1200mm | पीसीबी दबाना; आईएनजी: | समायोज्य दबाव वायवीय |
|---|---|---|---|
| प्रणाली: | विंडोज 7 | सॉफ्टवेयर: | आर एंड डी स्वतंत्र रूप से |
| प्रदर्शन: | टच स्क्रीन मॉनिटर | इनपुट डिवाइस: | कीबोर्ड और माउस |
| कैमरे की संख्या: | 5 | शक्ति: | 380AC 50 हर्ट्ज |
| बिजली की खेप: | 6kw | बढ़ते मोड: | छड़ी का समूह |
| घटक स्थान: | 0.2 मिमी | फीडर स्टेशनों: | 68PCS |
| नलिका: | 68PCS | बढ़ते गति: | 200000CPH |
| बढ़ती हुई ऊँचाई: | 13 मिमी |

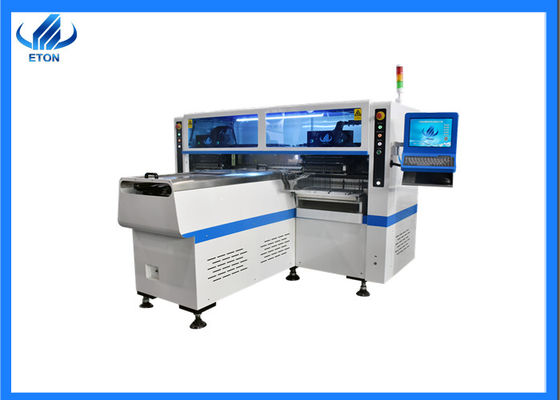

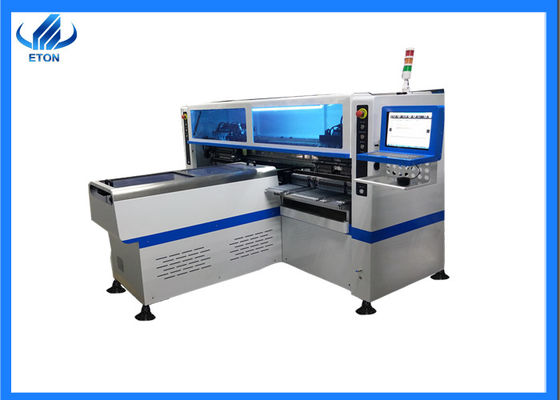

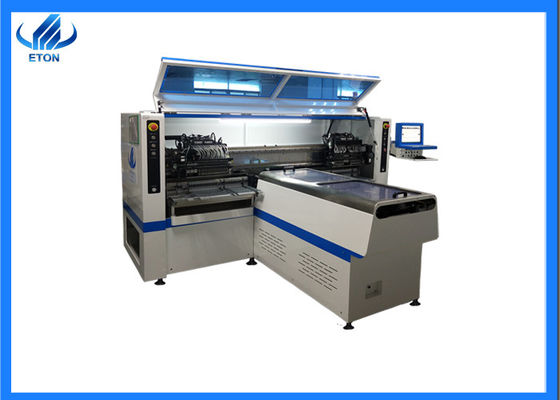

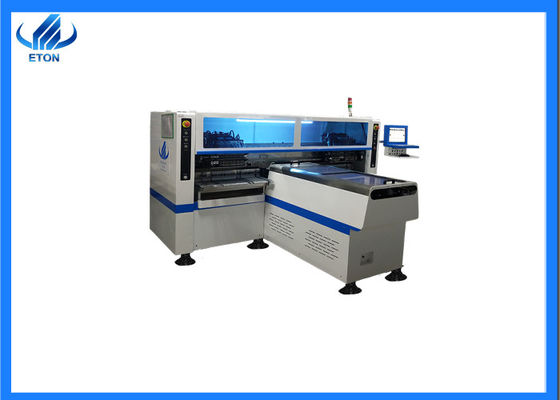

1.product details
Producing with 2～４ types of materials with capacity at same time, available for 5m,50m or any length of flexible strip and roll to roll.
Dual-arm four modules with 17 nozzles for each mounting part, and part A/B/C/D can be mounted separately or synchronously.
2.product Technical parameters of high speed pick and place machine
| Model number | HT-F9 |
| Dimension | 2700*2120*1550mm |
| PCB size | 1200*330～80*330mm |
| PCB thickness | 0.5～5mm |
| PCB clamping | adjustable pressure pneumatic |
| mounting mode | group to take and group to mount |
| system | windows 7 |
| display | touch screen monitor |
| input device | keyboard,mouse |
| NO.of camera | 5 sets of imported camera |
| mounting precision | ±0.03mm |
| mounting height | <13mm |
| mounting speed | 200000CPH |
| components | LED3014/3020/3528/5050 and resistors, capacitors, bridge rectifiers |
| components space | 0.2mm |
| NO.of feedings station | 68pcs |
| NO.of nozzles | 68pcs |
| power | 380AC 50HZ |
| power consumption | 6KW |
| operating environment | 23℃±3℃ |
| conveyor transmission | MAX length:1200mm |
| transmission speed | >500mm/sec |
| transmission direction | single(left→right,right→left) |
| transmission mode | online drive |
| position mode | optical |
| air pressure | >5.0kg/c㎡ |
| electrical control | independent research and development by ETON |
| motion control card module 1set | independent research and development by ETON |
| X.Y axis drive way | high-end magnetic linear motor+servo motor |
| feeding way | electric feeder with double motor |
3. The warranty
Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
4.Packing & delivery of smt mounter machine
5.Company profile
6. Business terms:
| Accepted delivery terms | EXW, FOB, CIF, CFR |
| Accepted payment currency | USD,CNY |
| Accepted payment type | L/C, T/T |
| Nearest port | Shenzhen |
7.Our Our certificates and certifications
8. trade show
9. FAQ
contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825
Industry related knowledge
Application industry:
Automatic placement machine is used to achieve high-speed, high-precision automatic placement of components, is the most critical and complex equipment in the whole SMT production. As the main equipment in the SMT production line, the placement machine has developed from the early low-speed mechanical placement machine to the high-speed optical alignment placement machine, and to the multi-function, flexible connection modular development.
As a high-tech product, it is very important for machines and people to operate safely and correctly. The most basic thing to operate the placement machine safely is that the operator should have the most accurate judgment, and should follow the following basic safety rules:
1. machine operator should receive operation training under correct method.
2. check the machine, replace parts or repair and internal adjustment should turn off the power supply (the maintenance of the machine must be done under the condition of pressing the emergency button or power off.
3. make sure to "read the coordinates" and adjust the machine YPU( programming parts) in your hands to stop at any time.
4. ensure that the "interlocking" safety equipment remains effective in order to stop the machine at any time, the safety inspection on the machine can not be skipped, short connection, otherwise it is extremely prone to personal or machine safety accidents.
only one operator is allowed to operate one machine
