उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| पीसीबी आकार: | 80 * 350mm ~ 350 * 1200mm | पीसीबी दबाना; आईएनजी: | समायोज्य दबाव वायवीय |
|---|---|---|---|
| प्रणाली: | विंडोज 7 | सॉफ्टवेयर: | आर एंड डी स्वतंत्र रूप से |
| प्रदर्शन: | टच स्क्रीन मॉनिटर | इनपुट डिवाइस: | कीबोर्ड और माउस |
| कैमरे की संख्या: | 5 | शक्ति: | 380AC 50 हर्ट्ज |
| बिजली की खेप: | 6kw | बढ़ते मोड: | छड़ी का समूह |
| घटक स्थान: | 0.2 मिमी | फीडर स्टेशनों: | 68PCS |
| नलिका: | 68PCS | बढ़ते गति: | 200000CPH |
| बढ़ती हुई ऊँचाई: | 13 मिमी |
1.product details
Producing with 2～４ types of materials with capacity at same time, available for 5m,50m or any length of flexible strip and roll to roll.
Dual-arm four modules with 17 nozzles for each mounting part, and part A/B/C/D can be mounted separately or synchronously.

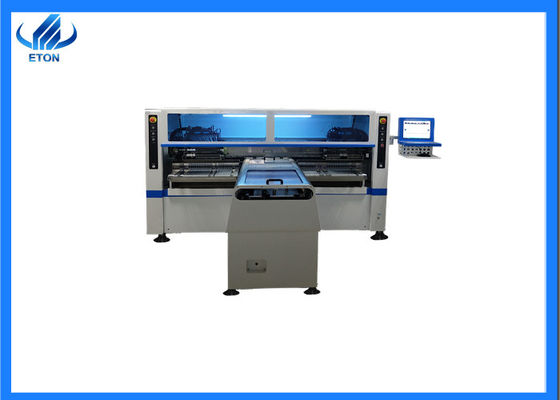

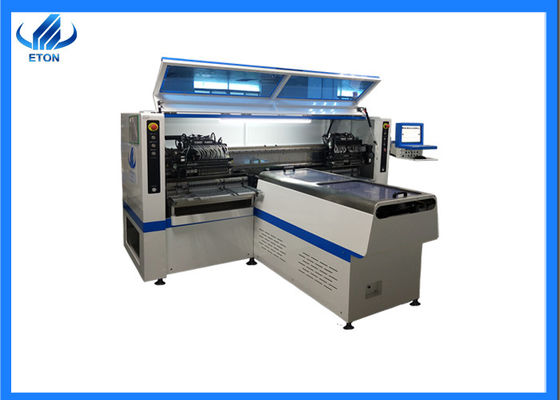

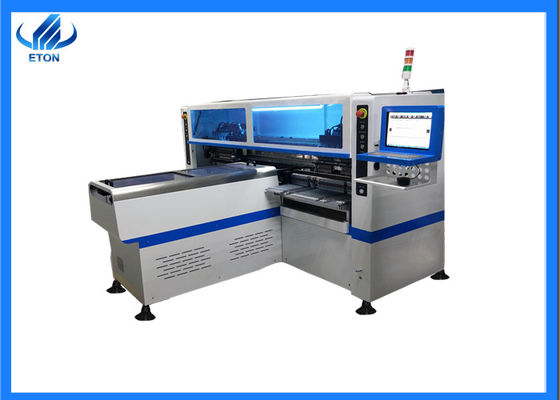

2.product Technical parameters of high speed pick and place machine
| Model number | HT-F9 |
| Dimension | 2700*2120*1550mm |
| PCB size | 1200*330～80*330mm |
| PCB thickness | 0.5～5mm |
| PCB clamping | adjustable pressure pneumatic |
| mounting mode | group to take and group to mount |
| system | windows 7 |
| display | touch screen monitor |
| input device | keyboard,mouse |
| NO.of camera | 5 sets of imported camera |
| mounting precision | ±0.03mm |
| mounting height | <13mm |
| mounting speed | 200000CPH |
| components | LED3014/3020/3528/5050 and resistors, capacitors, bridge rectifiers |
| components space | 0.2mm |
| NO.of feedings station | 68pcs |
| NO.of nozzles | 68pcs |
| power | 380AC 50HZ |
| power consumption | 6KW |
| operating environment | 23℃±3℃ |
| conveyor transmission | MAX length:1200mm |
| transmission speed | >500mm/sec |
| transmission direction | single(left→right,right→left) |
| transmission mode | online drive |
| position mode | optical |
| air pressure | >5.0kg/c㎡ |
| electrical control | independent research and development by ETON |
| motion control card module 1set | independent research and development by ETON |
| X.Y axis drive way | high-end magnetic linear motor+servo motor |
| feeding way | electric feeder with double motor |
3.product features of smt pick and place machine
4. The warranty
Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
5.Packing & delivery of smt mounter machine
6.Company profile
Business terms:
| Accepted delivery terms | EXW, FOB, CIF, CFR |
| Accepted payment currency | USD,CNY |
| Accepted payment type | L/C, T/T |
| Nearest port | Shenzhen |
7.Our Our certificates and certifications
8. trade show
9. FAQ
contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825
Industry related knowledge
Application industry:
Electronics industry
Mobile phone key glue, mobile phone battery package, notebook battery package, computer speaker/receiver, coil glue, PCB board bonding glue, IC glue, horn outer ring glue, PDA glue, LCD glue, IC packaging, IC bonding, housing bonding, optical device processing, circuit components bonding with substrate, PCB coating
Lighting Industry
led phosphor dot glue LED drive power supply heat conduction seal, hard lamp strip, soft lamp strip seal, bulb lamp, lighting lamp seal, LED street lamp adhesive seal wash wall lamp, cast light, lawn lamp and other outdoor lighting seal, led lamp holder seal, LED lampshade and lamp cup adhesive seal.
Automotive Industry
Lamp package, electric vehicle controller package, filter (oil filter, diesel filter, air filter), car body and roof reinforcement plate glue, brake shoe, clutch and drive belt seal, window seal, plastic baffle, radiator water tank glue, car sensor glue filling, car electronics and on-board electrical, instrumentation protection, mechanical seal and other automotive mechanical parts coating.
Industrial
Capacitors, transformers, relays, buttons, etc. adhesive filling, motor coil glue, electrical cabinet door edge glue.
Solar photovoltaic
Photovoltaic inverter heat conduction, solar cell box, solar module.
Construction Engineering
Heat insulation aluminum profile, steel, aluminum honeycomb plate, building plate, fire door, security door coating.
Hardware / Home Appliances / Small Commodities / Other
