उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| पीसीबी आकार: | 250 मिमी * किसी भी लंबाई | पीसीबी दबाना; आईएनजी: | समायोज्य दबाव वायवीय |
|---|---|---|---|
| प्रणाली: | विंडोज 7 | सॉफ्टवेयर: | आर एंड डी स्वतंत्र रूप से |
| प्रदर्शन: | टच स्क्रीन मॉनिटर | इनपुट डिवाइस: | कीबोर्ड और माउस |
| कैमरे की संख्या: | 5 | शक्ति: | 380AC 50 हर्ट्ज |
| बिजली की खेप: | 5KW | बढ़ते मोड: | ग्रुप स्टिक सेंट, सेंट स्टिक सेंट ले |
| घटक स्थान: | 0.2 मिमी | फीडर स्टेशनों: | 32pcs |
| नलिका: | 32pcs | बढ़ते गति: | 200000CPH |
| बढ़ती हुई ऊँचाई: | 13 मिमी |
product details

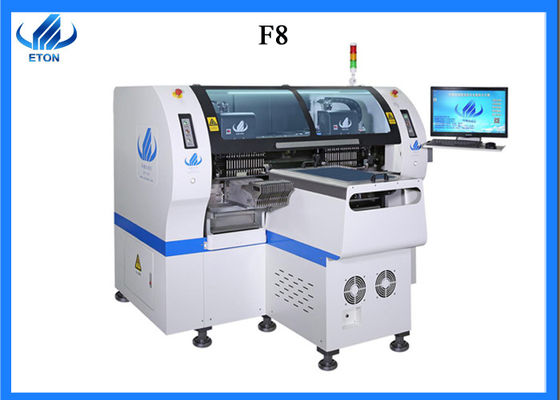

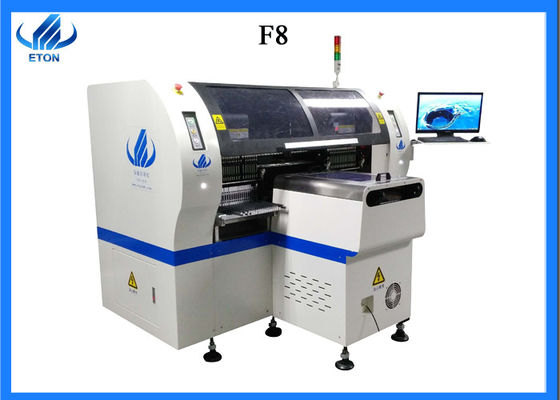

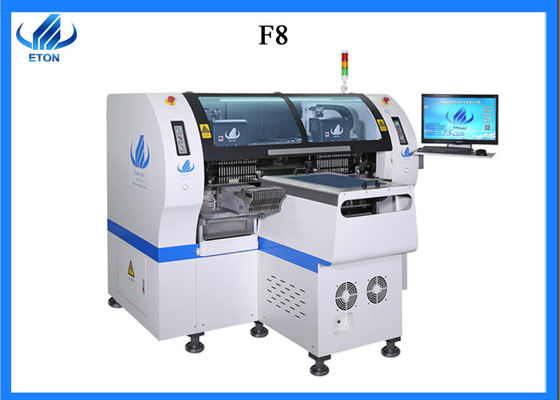

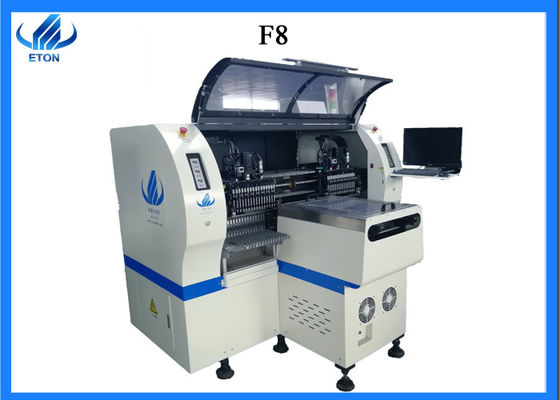

Components of pick and place machine ht-f8 can mount include LED2121/2727/3528/5050 and resistor,capacitors,bridge rectifiers,etc.
SMT mounter ht-f8 is especially applies to LED display. Max mounting height is 15mm,mounting speed is 150000CPH.
product Technical parameters of high speed pick and place machine
| Model number | HT-F8 |
| Dimension | 1600*1900*1550mm |
| PCB size | 80*110～345*600mm |
| PCB thickness | 0.5～5mm |
| mounting mode | group to take and group to mount |
| system | windows 7 |
| display | LED monitor |
| input device | keyboard,mouse |
| NO.of camera | 5 sets of imported camera |
| mounting precision | ±0.02mm |
| mounting height | <15mm |
| mounting speed | 150000CPH |
| components space | 0.2mm |
| NO.of feedings station | 32pcs |
| NO.of nozzles | 32pcs |
| power | 220AC 50HZ |
| power consumption | 5KW |
| operating environment | 23℃±3℃ |
| conveyor transmission | MAX length:1200mm |
| transmission speed | >500mm/sec |
| transmission direction | single(left→right,right→left) |
| transmission mode | Auto online drive |
| position mode | optical |
| air pressure | >5.0kg/c㎡ |
| electrical control | independent research and development by ETON |
| motion control card module 1set | independent research and development by ETON |
| X.Y axis drive way | servo motor |
| feeding way | electric feeder with double motor |
Business terms of smt mounter
| Accepted delivery terms | EXW, FOB, CIF, CFR |
| Accepted payment currency | USD,CNY |
| Accepted payment type | L/C, T/T |
| Nearest port | Shenzhen |
product parts of smt mounter
Packing & delivery of smt mounter machine
Company profile
Our Our certificates and certifications
our clients
contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825
Industry related knowledge
Rubber dispenser
The dispenser is also called glue coating machine, glue dropping machine, glue beating machine, glue filling machine and so on, specially controls the fluid. And the fluid drip, coated on the surface of the product or the product inside the automatic machine, can achieve three-dimensional, four-dimensional path dispensing, accurate positioning, accurate control glue, no wire drawing, no leakage glue, no drop glue. The dispenser is mainly used for glue, paint and other liquid precision points, injection, coating, drip to each product precise position, can be used to achieve dot, line, circle or arc type.
Features: can replace manual work, realize mechanized production; single machine can operate, simple and convenient, high speed and precision; SD card storage mode, convenient data management and file transmission between machines; can carry two-component pumping system, constitute a double-liquid automatic dispenser; can add dispensing controller and dispensing valve and other accessories to form floor dispensing equipment; can carry screw locking mechanism, configured into automatic locking screw machine; can be upgraded to on-line robot as required for various automatic assembly; load capacity, processing space.
