उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| पीसीबी आकार: | 80 * 330mm ~ 1200 * 330mm | पीसीबी दबाना; आईएनजी: | समायोज्य दबाव वायवीय |
|---|---|---|---|
| प्रणाली: | विंडोज 7 | सॉफ्टवेयर: | आर एंड डी स्वतंत्र रूप से |
| प्रदर्शन: | टच स्क्रीन मॉनिटर | इनपुट डिवाइस: | कीबोर्ड और माउस |
| कैमरे की संख्या: | 5 | शक्ति: | 380AC 50 हर्ट्ज |
| बिजली की खेप: | 5KW | बढ़ते मोड: | ग्रुप स्टिक सेंट, सेंट स्टिक सेंट ले |
| घटक स्थान: | 0.2 मिमी | फीडर स्टेशनों: | 68PCS |
| नलिका: | 34PCS | बढ़ते गति: | 150000CPH ~ 180000CPH |
| बढ़ती हुई ऊँचाई: | 13 मिमी |

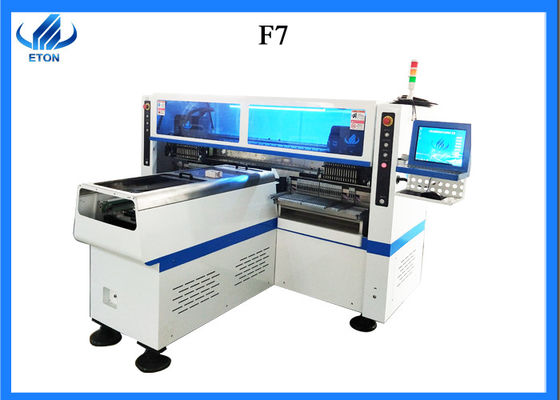

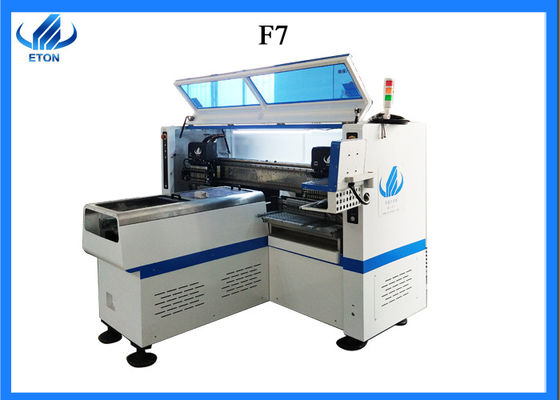

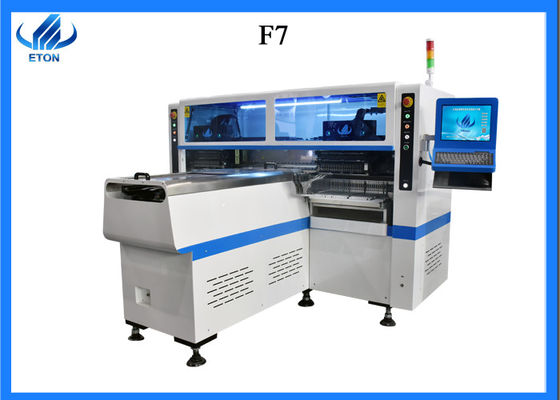

product details
Components of this high speed SMT mounter machine ht-f7 can mount include LED3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers,etc.
product Technical parameters of high speed pick and place machine
| Model number | HT-F7 |
| Dimension | 2700*2120*1550mm |
| PCB size | 80*330～1200*330mm |
| PCB thickness | 0.5～5mm |
| PCB clamping | adjustable pressure pneumatic |
| mounting mode | group to take and group to mount |
| system | windows 7 |
| display | touch screen monitor |
| input device | keyboard,mouse |
| NO.of camera | 5 sets of imported camera |
| mounting precision | ±0.02mm |
| mounting height | <13mm |
| mounting speed | 200000CPH |
| components space | 0.2mm |
| NO.of feedings station | 68pcs |
| NO.of nozzles | 34pcs |
| power | 380AC 50HZ |
| power consumption | 6KW |
| operating environment | 23℃±3℃ |
| conveyor transmission | MAX length:1200mm |
| transmission speed | >500mm/sec |
| transmission direction | single(left→right,right→left) |
| transmission mode | online drive |
| position mode | optical |
| air pressure | >5.0kg/c㎡ |
| electrical control | independent research and development by ETON |
| motion control card module 1set | independent research and development by ETON |
| X.Y axis drive way | high-end magnetic linear motor+servo motor |
| feeding way | electric feeder with double motor |
Business terms of smt mounter
| Accepted delivery terms | EXW, FOB, CIF, CFR |
| Accepted payment currency | USD,CNY |
| Accepted payment type | L/C, T/T |
| Nearest port | Shenzhen |
product parts of smt mounter
Packing & delivery of smt mounter machine
Company profile
Our Our certificates and certifications
our clients
contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825
Industry related knowledge
SMT is the surface assembly technology (surface mount technology)(abbreviation of Surface Mounted Technology), is the most popular technology and process in the electronic assembly industry at present. Electronic circuit surface assembly technology (Surface Mount Technology,SMT), known as surface mount or surface mount technology. This is a kind of circuit assembly technology which installs components without pin or short lead on the surface of printed circuit board (Printed Circuit Board,PCB SMC/SMD,) or other substrate by means of reflow welding or immersion welding.
the addition of a SMT placement machine to the production line can solve the bottleneck problem and speed up the rhythm. this method provides more production capacity and more feeder (feeder) positions to better balance the production line without significantly increasing the production line management complexity, which is much larger than the production capacity improved by adding a single placement machine. in this respect, guangshengde's high precision and high speed multifunctional placement machine can meet this demand.
