उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
पीसीबी आकार: | 80 * 110mm ~ 345 * 600 मिमी | पीसीबी दबाना; आईएनजी: | समायोज्य दबाव वायवीय |
---|---|---|---|
प्रणाली: | विंडोज 7 | सॉफ्टवेयर: | आर एंड डी स्वतंत्र रूप से |
प्रदर्शन: | टच स्क्रीन मॉनिटर | इनपुट डिवाइस: | कीबोर्ड और माउस |
कैमरे की संख्या: | 5 | शक्ति: | 380AC 50 हर्ट्ज |
बिजली की खेप: | 5KW | बढ़ते मोड: | छड़ी का समूह |
घटक स्थान: | 0.2 मिमी | फीडर स्टेशनों: | 32pcs |
नलिका: | 32pcs | बढ़ते गति: | 150000CPH |
बढ़ती हुई ऊँचाई: | 15mm |

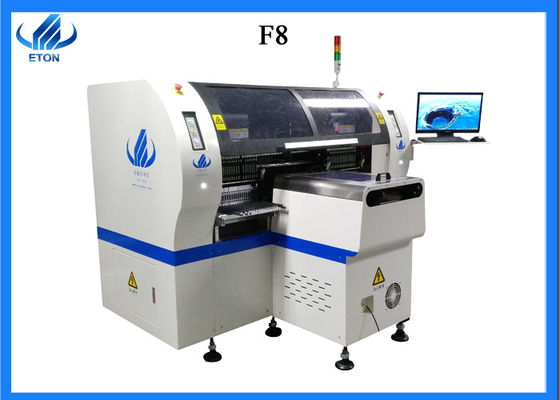

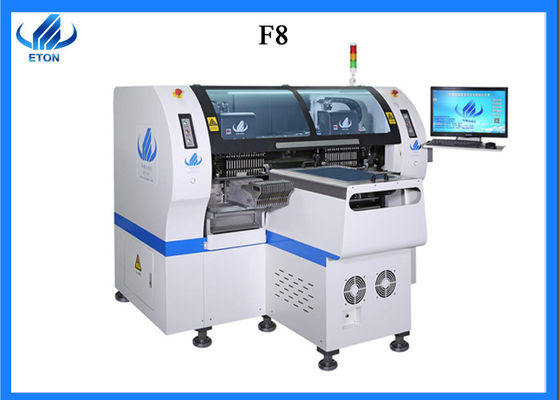

1.product details
Components of pick and place machine ht-f8 can mount include LED2121/2727/3528/5050 and resistor,capacitors,bridge rectifiers,etc.
SMT mounter ht-f8 is especially applies to LED display. Max mounting height is 15mm,mounting speed is 150000CPH.
2.product Technical parameters of high speed pick and place machine
Model number | HT-F8 |
Dimension | 1600*1900*1550mm |
PCB size | 80*110~345*600mm |
PCB thickness | 0.5~5mm |
mounting mode | group to take and group to mount |
system | windows 7 |
display | LED monitor |
input device | keyboard,mouse |
NO.of camera | 5 sets of imported camera |
mounting precision | ±0.02mm |
mounting height | <15mm |
mounting speed | 150000CPH |
components space | 0.2mm |
NO.of feedings station | 32pcs |
NO.of nozzles | 32pcs |
power | 220AC 50HZ |
power consumption | 5KW |
operating environment | 23℃±3℃ |
conveyor transmission | MAX length:1200mm |
transmission speed | >500mm/sec |
transmission direction | single(left→right,right→left) |
transmission mode | Auto online drive |
position mode | optical |
air pressure | >5.0kg/c㎡ |
electrical control | independent research and development by ETON |
motion control card module 1set | independent research and development by ETON |
X.Y axis drive way | servo motor |
feeding way | electric feeder with double motor |
3.product features of smt pick and place machine
4. The warranty
Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
