उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| पीसीबी आकार: | 80 * 110mm ~ 345 * 600 मिमी | पीसीबी दबाना; आईएनजी: | समायोज्य दबाव वायवीय |
|---|---|---|---|
| प्रणाली: | विंडोज 7 | सॉफ्टवेयर: | आर एंड डी स्वतंत्र रूप से |
| प्रदर्शन: | टच स्क्रीन मॉनिटर | इनपुट डिवाइस: | कीबोर्ड और माउस |
| कैमरे की संख्या: | 5 | शक्ति: | 380AC 50 हर्ट्ज |
| बिजली की खेप: | 5KW | बढ़ते मोड: | लेने के लिए समूह और माउंट करने के लिए समूह |
| घटक स्थान: | 0.2 मिमी | फीडर स्टेशनों: | 32pcs |
| नलिका: | 32pcs | बढ़ते गति: | 150000CPH |
| बढ़ती हुई ऊँचाई: | 15mm |
1.product details
Components: LED2121/2727/3528/5050 and resistor,capacitors,bridge rectifiers,etc.
Application:LED display

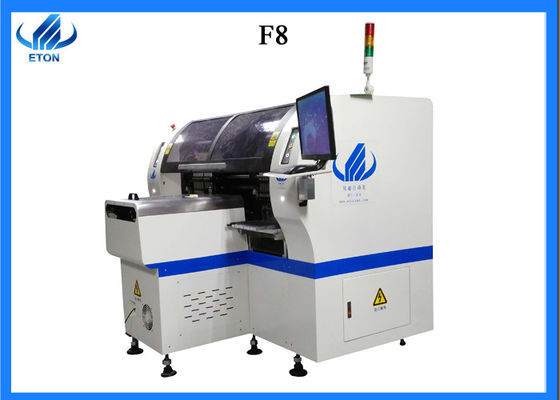

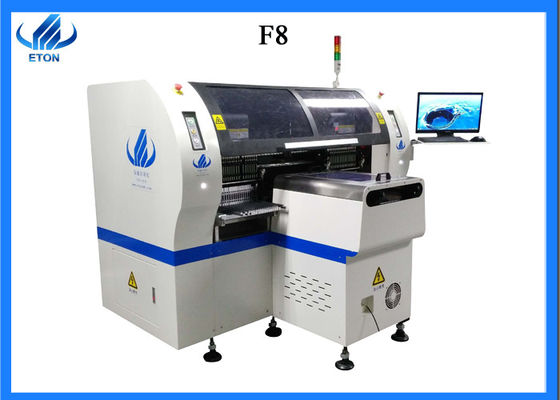

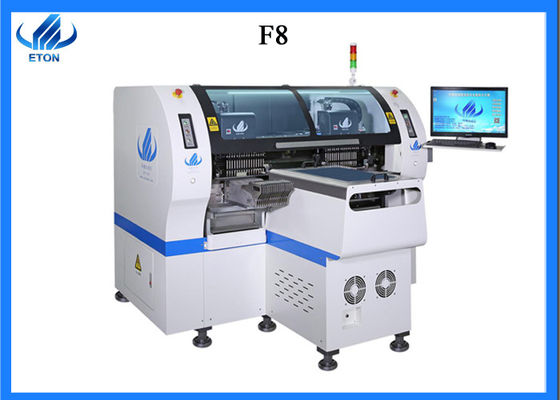

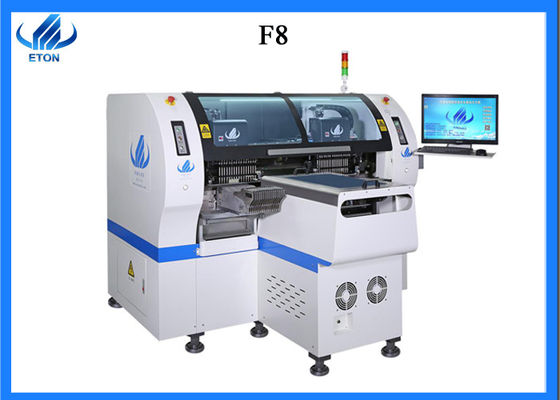

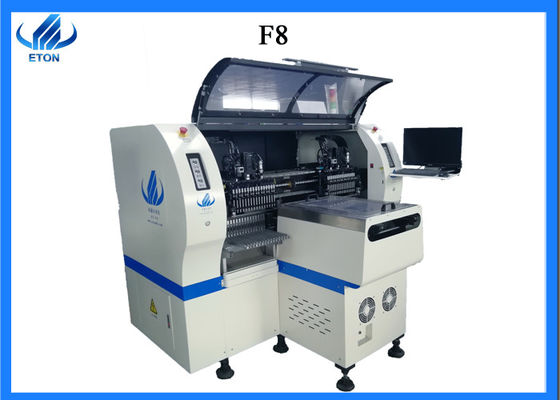

2.product Technical parameters of high speed pick and place machine
| Model number | HT-F8 |
| Dimension | 1600*1900*1550mm |
| PCB size | 80*110～345*600mm |
| PCB thickness | 0.5～5mm |
| mounting mode | group to take and group to mount |
| system | windows 7 |
| display | LED monitor |
| input device | keyboard,mouse |
| NO.of camera | 5 sets of imported camera |
| mounting precision | ±0.02mm |
| mounting height | <15mm |
| mounting speed | 150000CPH |
| components space | 0.2mm |
| NO.of feedings station | 32pcs |
| NO.of nozzles | 32pcs |
| power | 220AC 50HZ |
| power consumption | 5KW |
| operating environment | 23℃±3℃ |
| conveyor transmission | MAX length:1200mm |
| transmission speed | >500mm/sec |
| transmission direction | single(left→right,right→left) |
| transmission mode | Auto online drive |
| position mode | optical |
| air pressure | >5.0kg/c㎡ |
| electrical control | independent research and development by ETON |
| motion control card module 1set | independent research and development by ETON |
| X.Y axis drive way | servo motor |
| feeding way | electric feeder with double motor |
3.product features of smt pick and place machine
4.Packing & shipping of smt mounter machine
| Packaging materials | Waterproof material and wooden case |
| Lead time | Delivery within 30 days after receipt of payment.. |
| port | Shenzhen |
| Delivery time | Transshipment and partial shipment according to the contract |
5.Company profile
6.Our Our certificates and certifications
7.our services
8. trade show
Based on the image information read by the camera, the XYZ movement required for positioning is automatically calculated, and then the XYZ correction of the workpiece is realized by controlling the movement of a three-axis platform (or four-axis platform), so as to achieve the purpose of accurate alignment. Usually used in on-line production or production line automation of the situation.
To adapt to different components and improve the accuracy and speed of the visual system, the detection pair camera is designed as a camera with high resolution in small field for small Chip components CCD1 and a camera with low resolution in large field for large IC as a reference positioning (MARK point search) camera. When the center of the suction nozzle reaches the center position of the visual field of the middle camera of the detection pair, a trigger signal is issued to obtain the image, and the corresponding light source shines once at the same time as the trigger.
