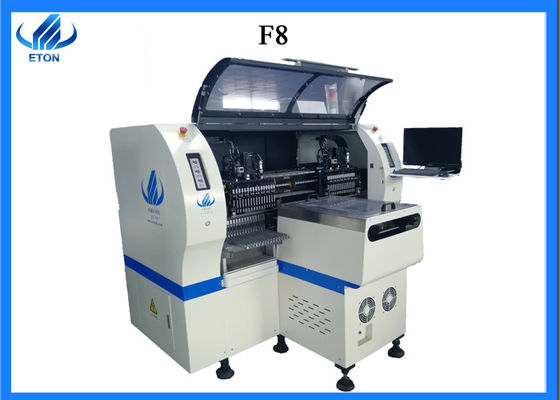

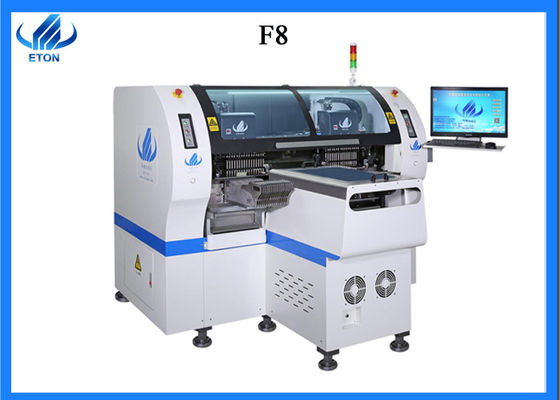

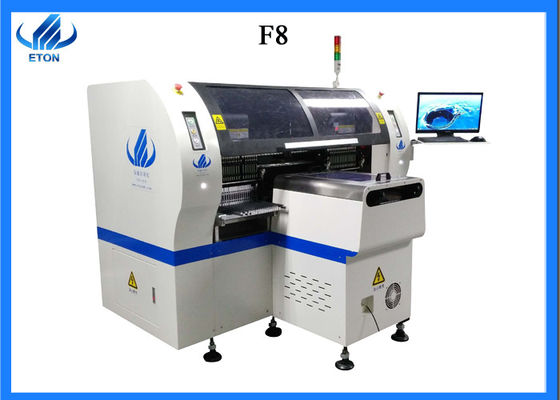

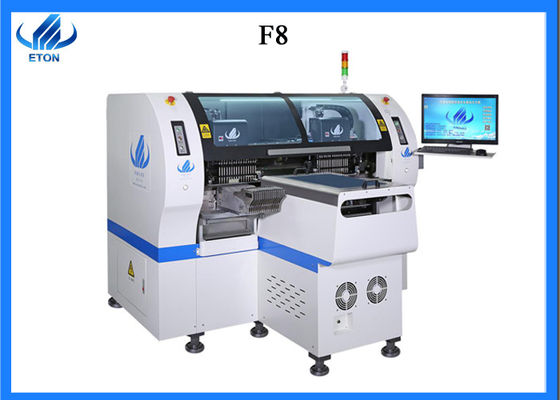

high speed pick and place mounte for leddisplay,smt pick and place ,automatic mounter,magnetic linear motor


4.Company profile





5.Our  Our certificates and certifications



6.our services


7. trade show

• Ball bubble assembly line

• Since incandescent lamps and electronic energy-saving lamps still occupy a very high proportion in people's daily use, in order to reduce waste, LED lighting manufacturers must develop LED lighting products that conform to existing interfaces and people's usage habits, so that people can use a new generation of LED lighting products without the need to replace the original traditional lamp base and line. As a result LED the bulb came into being.
• Category:

According to lamp head classification, divided into B22,E26,E27,E14

Classification according to heat dissipation case: plastic case, aluminum profile, ceramics

Type according to lamp holder: Snail: E27,E14,E22,E12; bayonet: B22( bayonet must flush needle)

• Advantages of LED bulb: energy saving, environmental protection; long service life; no strobe

more energy saving: the energy consumption of LED lamps is 1/4 of that of energy saving lamps and 1/10 of incandescent lamps.

longer life :50,000 hours, three ~ five times the energy saving lamp.

healthier: uniform light guide, no stroboscopic, no glare, no uv and transverse.

More environmentally friendly: does not contain the pump lamp harmful material, may recycle.

Full color change. Easy installation.

• Assembly Steps of Ball Bubbles

①　manually put the drive board into the lamp cup;

②　Machine calibration drive position (positioning);

③　Automatic Optical Source Board

④　Calendering Power Sheet for Automatic Pressing Machine

⑤　Automatic straightening

⑥　Automatic upper lamp head, test luminous or not, cut wire, punching needle, upper rivet, then rivet detection

⑦　Electrical parameter test, light source board test, defective products

⑧　Glue coating for dispensing

⑨　Automatic lampshade

⑩　Aging line, bad products

⑪　Automatic marking machine marking

⑫　Automatic packing

• Machines required

①　LED automatic lamppost assembly machine

Artificial put drive into the lamp cup, put on the tray by the manipulator grab to the assembly machine, CCD detection, position detection, brush heat conductive silica gel, on the lamp bead board, test.

②　 LED automatic lampholder assembly machine

After the main platform is loaded, the center line is automatically adjusted, the upper head is mounted, the traverse is tested, and the rivet is punched on the needle.

③　LED bubble shell gluing machine

High voltage resistance test, electrical parameters test, bad products out. qualified product dispensing on the bubble shell.

④　LED bubble auto-aging line

Mainly for aging, four-stage voltage: high-voltage aging, high-voltage aging, atmospheric impact, atmospheric aging.

⑤　LED automatic cleaning marking machine

Waiting for cleaning test, marking.

⑥　LED automatic packing machine

automatically open the box and pack the lamp box cover.
