उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| गारंटी: | 1 वर्ष, 12 महीने | लागू घटकों: | 0402, 0805, 0603, 1206, एसओपी |
|---|---|---|---|
| आवेदन: | SMD उत्पादन लाइन, M4 M1 I PULSE SMT पिक एंड प्लेस मशीन, SMT माउंटिंग शूटर मशीन, श्रीमती उत्पादन लाइन | उत्पाद का नाम: | प्लेस मशीन \ एलईडी मुट्टी / एलईडी असेंबली मशीन, ऑटोमैटिक एसएमटी माउंटिंग शूटर, सैमसंग SM310 पिक एंड |
| बढ़ते गति: | 100000-150000 CPH, 0.036 / चिप (A-2), बिना विज़न -6000 cph विज़न-4000 cph, 40000 CPH के साथ |
1. product details

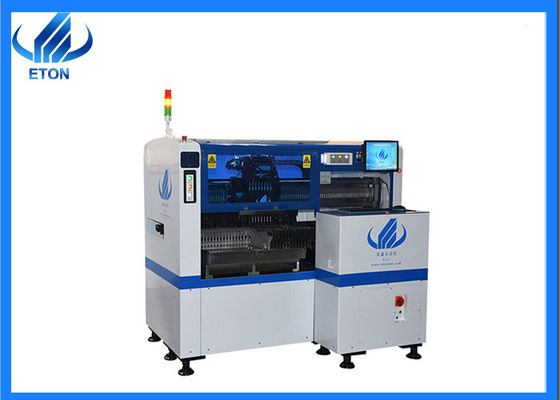

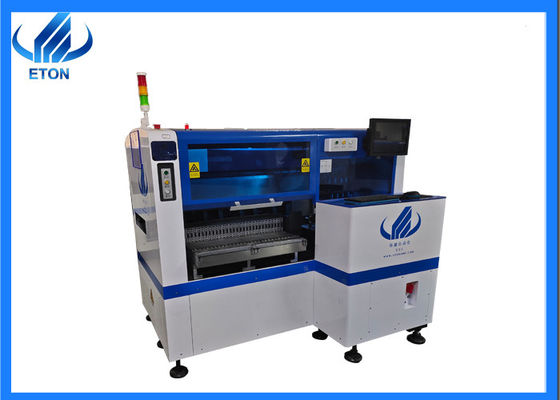

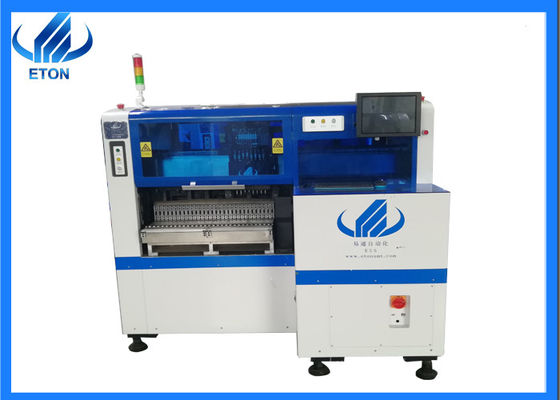

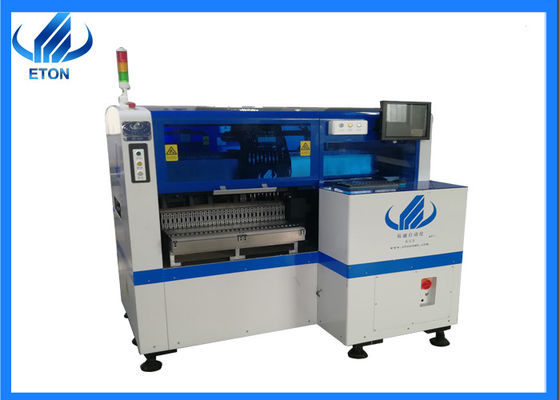

HT-E5s machine is single module multifunctional mounter with high capacity of 40000CPH. It can mount capacitors,resistors,LED3014/3020/3528/5050,IC and shaped components. It applies to power driver,electric board,lens,linear bulb,household appliance and etc.
Technical parameter of pick and place machineht-e5s
| Model number | HT-E5S |
| Dimension | 1650*12000*1570mm |
| PCB size | 5000*350～100*100mm |
| PCB thickness | 0.5～3mm |
| PCB clamping | adjustable pressure pneumatic |
| mounting mode | Group take cent stick, cent take cent stick |
| system | windows 7 |
| display | touch screen monitor |
| input device | keyboard,mouse |
| NO.of camera | 2 sets of imported camera |
| mounting precision | ±0.02mm |
| mounting height | <40mm |
| mounting speed | 40000CPH |
| components space | 0.2mm |
| NO.of feedings station | 30pcs |
| NO.of nozzles | 8pcs |
| power | 380AC 50HZ |
| power consumption | 4KW |
| operating environment | 23℃±3℃ |
| conveyor transmission | MAX length:500mm |
| transmission speed | >500mm/sec |
| transmission direction | single(left→right,right→left) |
| transmission mode | online drive |
| position mode | optical |
| air pressure | >5.0kg/c㎡ |
| electrical control | independent research and development by ETON |
| motion control card module 1set | independent research and development by ETON |
| X.Y axis drive way | high-end magnetic linear motor+servo motor |
| feeding way | electric feeder with double motor |
product features of smt mounter ht-e5s
Product parts
Business terms
| Accepted delivery terms | EXW, FOB, CIF, CFR |
| Accepted payment currency | USD,CNY |
| Accepted payment type | L/C, T/T |
| Nearest port | Shenzhen |
our services
Company information
ETON automation equipment co., ltd. is a fast growing high-tech enterprise, we are committed to independent research and development, the quality and performance of the production of machine products have been comparable to international famous brands.
Our products are of high quality and low price. We can provide the best solution to optimize the placement of the production line. We can track customers' products throughout the whole process.
Buying our products can effectively improve production efficiency.
Packing & shipping of smt mounter ht-e5s
Packing details: vacuum packing and wooden case
Shipping: Shenzhen port within 30 days after payment
Port: Shenzhen
Lead time:
| Quantity (units) | Est. Time (days) |
| １－２ | >２ |
Our certifications
The company has independently developed a number of intellectual property technologies, including 9 invention patents, 112 practical patents and 12 software Copyrights.Successively obtained“shenzhen high-tech enterprise”,“national high-tech enterprise”, “shenzhen TOP brand”, “2015 LED technology innovation award” ,“industry special contribution award” ,“the 4th China LED first innovation award” ,“industry special contribution award”, “double soft enterprise”and so on.
Our clients
the company has an absolute leading market share in the LED industry, and its products are exported to more than 20 countries including Korea, India, Vietnam, Tunisia, Egypt and Turkey.
Trade shows
Since the establishment of the company, we have actively participated in relevant exhibitions held at home and abroad every year.
